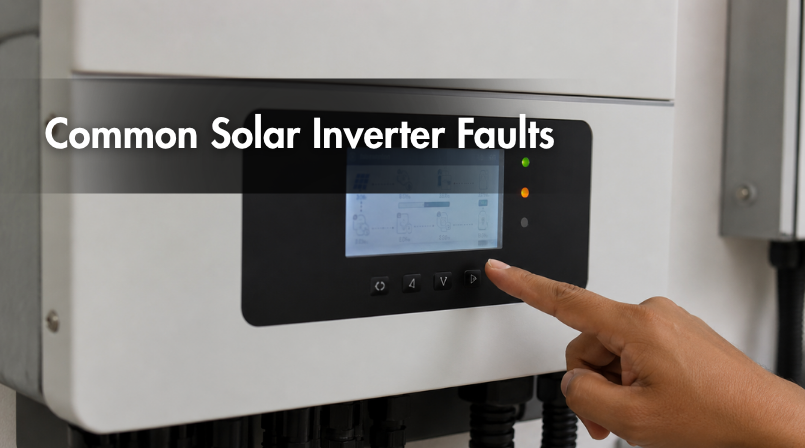

Common Solar Inverter Faults (and What They Actually Mean)
On this page
An inverter fault code on the display is rarely the emergency it looks like. Most faults are the inverter protecting itself and the system from a condition outside normal operating range, not a sign the unit has failed. Knowing which faults are routine and which need a service call is the difference between a five-minute reset and an unnecessary technician visit, and it's exactly where reliable after sale support OSG Oriana India provides makes the difference for installers and site owners alike.
Why Inverter Faults Happen
Solar inverters run continuously through heat, dust, monsoon humidity, and voltage fluctuation on both the DC and AC sides. Fault protection exists precisely because these conditions vary an inverter that shuts down on a genuine grid voltage spike is doing its job correctly. The trouble is that fault codes on a small LCD screen rarely explain themselves in plain language, which is why so many service calls turn out to be faults the site team could have cleared in minutes with the right guidance.
The Faults You'll See Most Often
Grid voltage or frequency fault the inverter has detected grid voltage or frequency outside its configured range and disconnected to protect itself and the grid. This usually clears automatically once grid conditions normalize and rarely indicates an inverter problem.
Insulation resistance fault often triggered by moisture ingress at a PV connector or cable joint, especially after heavy rain. It typically resolves once the affected connection dries out, but a persistent fault points to a cable or gland that needs resealing.
Overheating / derating inverters reduce output automatically once internal temperature climbs past a threshold, usually from poor ventilation, dust buildup on cooling fins, or direct sun exposure on the enclosure. Clearing airflow around the unit resolves most cases.
DC arc-fault (AFCI) trip modern inverters with built-in arc-fault detection will trip on a suspected loose DC connection. This is a genuine safety feature and should always be inspected rather than simply reset, since it can indicate a connector that needs re-terminating.
Communication/monitoring fault the inverter itself is generating power normally, but its WiFi, LAN, or RS485 link to the monitoring app has dropped. This affects visibility, not generation, and is usually a router or signal issue rather than an inverter fault.
PID (Potential Induced Degradation) a gradual efficiency loss in the PV modules themselves rather than the inverter, caused by voltage stress between the panel and its frame. Inverters with built-in PID recovery functions can reverse much of this overnight.
When to Reset Yourself vs. Call for Support
Grid, communication, and most overheating faults are safe to power-cycle and monitor. Insulation and arc-fault faults are worth a visual inspection of nearby connectors before assuming it's serious. Anything that recurs repeatedly after a reset, or any fault involving a burning smell, unusual noise, or visible damage, should go straight to a service call rather than repeated troubleshooting on-site. This is where genuine after sale support OSG Oriana India offers on every brand it distributes matters most a documented fault code and a quick call usually resolves in minutes what would otherwise mean guesswork or a wasted site visit.
Solar Products Supplier/Distributor PAN India
OSG Oriana India backs every product it distributes with after sale support OSG Oriana India customers can actually reach genuine manufacturer warranty, technical guidance, and PAN India service coverage.
Solar Modules LONGi & Goldi
LONGi and Goldi Solar modules come with certified performance warranties and dedicated after-sales tracking for degradation claims.
Solar Inverters Solis & Sineng
Solis and Sineng inverters are supported with manufacturer-backed warranty service and technical troubleshooting for the fault types covered above, across the full 3kW to 125kW+ range.
Solar Cables: APAR
APAR solar cables round out a fully supported system reducing the insulation and connector faults that account for a large share of service calls in the first place.
FAQs
1. Is a grid fault on my inverter something to worry about?
Usually not it means the inverter detected abnormal grid conditions and disconnected as designed; it typically clears on its own.
2. Why does my inverter's output drop on hot afternoons?
This is thermal derating, a protective feature that reduces output as internal temperature rises, usually fixed by improving airflow around the unit.
3. What should I do if an arc-fault (AFCI) trip keeps happening?
Get it inspected rather than resetting repeatedly a recurring AFCI trip usually means a loose DC connection that needs attention.
4. Does a communication fault mean my system stopped generating power?
No, it usually just means the monitoring link dropped; the inverter typically keeps generating normally.
5. How do I get support for a fault I can't clear myself?
Contact your inverter's authorized distributor with the exact fault code OSG Oriana India provides direct technical support for every brand it distributes.
