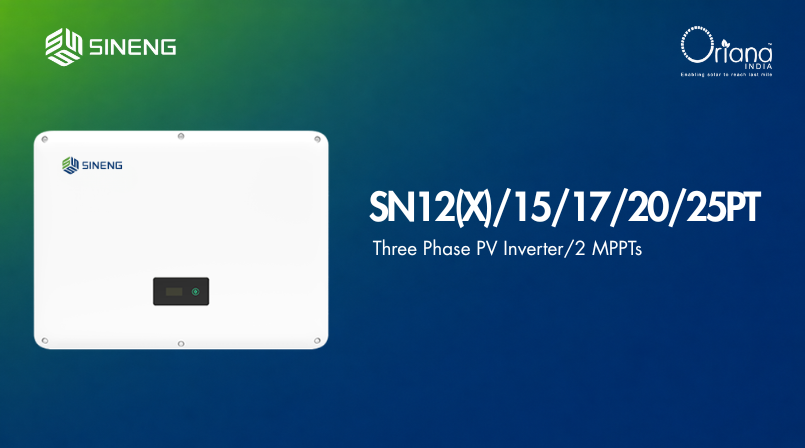

Sineng SN12(X)/15/17/20/25PT: Full Specification Breakdown

Choosing between residential-scale and commercial-scale equipment usually comes down to one question: does the site's actual load justify the jump? Among Sineng On-grid Inverters, the SN12(X)/15/17/20/25PT series exists because that jump is often unnecessary it delivers commercial-adjacent capacity while staying part of the same residential-class family, with the same reliability standards and monitoring approach across the board.

The Five Models at a Glance

Every model in this line of Sineng On-grid Inverters shares the same three-phase, 2-MPPT architecture, so the jump from a 12kW to a 25kW site doesn't mean relearning a different product's monitoring or wiring conventions.

MPPT Design and String Flexibility

The step from 3 PV inputs (SN12PT-X, SN15PT) to 4 PV inputs (SN17PT-SN25PT) matters more than the number itself suggests. Extra input capacity lets larger or irregularly shaped roofs split across additional independent strings rather than compromising on layout to fit a fixed input count. With 2 MPPT trackers managing those strings, each tracking channel can be paired to strings facing different directions without one weaker string dragging down a stronger one a common limitation on single-MPPT designs at this capacity.

Efficiency and Build Quality

Max. efficiency holds at 98.5% or higher across every model in the range, which is a meaningful figure to hold onto as capacity scales some inverter families lose efficiency at higher power points, but this series maintains it consistently from the 12kW model through the 25kW model. On the build side, every unit carries IP66 ingress protection with a C5 anti-corrosion rating for coastal and industrial-adjacent outdoor mounting, along with Type II surge protection on both DC and AC sides as a standard inclusion rather than an optional extra.

Safety and Compliance Features

Built-in AFCI (arc-fault circuit interrupter) detection is standard across the range, shutting the unit down automatically on a suspected DC arcing condition rather than requiring a separate add-on module. Export power limit functionality is also built in, letting installers configure the inverter to comply with DISCOM export restrictions directly through the app rather than adding external limiting hardware a requirement that comes up often enough on Indian grid-tied installations that having it native to the inverter saves a step on every project.

Monitoring That Scales With the Install Base

App-based smart monitoring setup, remote maintenance access, and accurate string-level current detection are consistent across the series, which matters for installers running a growing fleet of Sineng On-grid Inverters across different site sizes the monitoring experience and fault-diagnosis workflow stay identical whether the site has a 12kW unit or a 25kW one. An optional OLED display is available on-unit for sites that want status visibility without opening the app.

Choosing the Right Model for Your Site

Sizing across this range of Sineng On-grid Inverters comes down to load and roof layout more than raw capacity alone:

• 12-15kW large homes with genuine three-phase demand, or small commercial spaces with a single, uncomplicated roof surface.

• 17-20kW split or irregular roof layouts benefiting from the 4-input design, or slightly larger commercial loads.

• 25kW the ceiling of the residential-adjacent range, suited to sites that would otherwise need two smaller inverters running in parallel.

Sourcing This Series Through OSG Oriana India

OSG Oriana India distributes the full range of Sineng On-grid Inverters in India, including the SN12(X)/15/17/20/25PT series, with genuine manufacturer warranty and technical sizing support. See the complete lineup on the Sineng Inverters product page, compare it against the standard-range SN3.0/4.0/5.0/6.0/8.0/10/12PT series, or reach the team via Contact Us for a project-specific quote.

Get a quote for the Sineng SN12(X)/15/17/20/25PT series →
