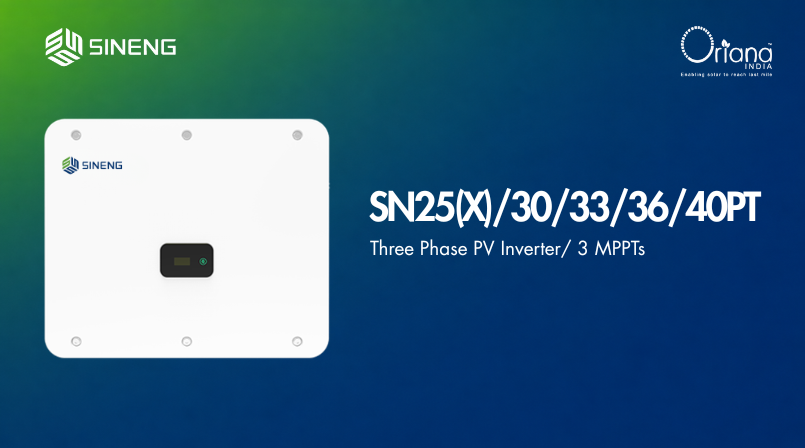

Sineng SN25(X)/30/33/36/40PT: The C&I Inverter Built for Multi-Facet Rooftops

Some rooftops don't have one clean surface to work with they have three or four, facing different directions, at different heights, sometimes with different shading. That's the specific problem the Sineng SN25(X)/30/33/36/40PT solves. Among Sineng On-grid Inverters, this model stands out with 3 independent MPPT trackers and 6 PV inputs, built for exactly the layouts a 2-MPPT inverter forces a compromise on.

Full technical details are in the official SN25(X)/30/33/36/40PT datasheet, and the model sits alongside the rest of the range on the Sineng Inverters product page. For project-specific sizing, reach the team via Contact Us.

Site One: The Multi-Facet Warehouse Roof

Warehouses and distribution centers often have long roof spans broken into multiple sections by structural ridges, skylights, or HVAC unit rarely one continuous surface. With 6 PV inputs split across 3 MPPTs (2 inputs per tracker), each roof section can run as its own independently-tracked string pair. A warehouse that would otherwise need two smaller inverters, or accept underperformance from forcing mismatched strings onto one tracker, covers the whole layout with a single SN30PT or SN33PT instead.

Site Two: The Bifacial Module Project

Bifacial panels generate power off both faces, but only when the mounting and inverter are actually built to make use of the rear-side gain. This series carries built-in bifacial module compatibility, meaning the inverter's tracking and input design accounts for the different generation profile bifacial arrays produce rather than treating them like standard monofacial strings. For ground-mount or elevated commercial installs specifically chosen for bifacial gain, that compatibility is what actually realizes the extra yield on paper.

Site Three: The Cold Storage or Agri-Processing Unit

Facilities running compressors, chillers, or processing equipment draw heavy, spiky loads rather than a flat consumption curve. The 1.1x continuous output overload capability across this series gives headroom for load variation without nuisance tripping, while the 50A/50A/50A max. current per MPPT on the larger models (SN36PT, SN40PT) supports the higher string currents that come with denser panel layouts common on space-constrained agri-processing sites.

Site Four: The EPC Bridging Residential and C&I Portfolios

For installers moving from residential-scale work into their first genuinely commercial projects, standardizing on Sineng On-grid Inverters across both ends of that range the SN3.0-12PT and SN12(X)-25PT residential lines, and this 25-40kW step-up keeps monitoring, spare parts, and technical support consistent as the project mix grows, rather than introducing an entirely new brand and support relationship at the C&I threshold.

What's Under the Hood Across the Range

• Recommended max. PV power from 37.5kWp (SN25PT-X) up to 60kWp (SN40PT)

• Max. PV input voltage of 1100V, with a full-power MPPT range of 320V-480V (adjustable to local standards)

• Max. efficiency of 98.60%, with EU efficiency at 98.30% consistent across every model in the series

• IP66 protection with C5 anti-corrosion rating, Type II surge protection on both DC and AC sides, and an operating range of -25°C to +60°C

• Built-in AFCI and PID recovery, both included as standard rather than optional add-ons

• Export power limit support for DISCOM compliance, configured through app-based monitoring

Why the Right Inverter Family Matters at This Scale

At 25-40kW, the cost of a mismatched inverter shows up fast clipped output on multi-facet roofs, underperforming bifacial yield, or nuisance trips on variable industrial loads. Choosing a purpose-built option within the Sineng On-grid Inverters lineup, rather than forcing a smaller residential unit to cover a commercial-scale, multi-surface site, is what actually protects the return on a project this size.

Sourcing the SN25(X)/30/33/36/40PT Through OSG Oriana India

OSG Oriana India is the official Sineng distributor in India, supplying this series part of the broader Sineng On-grid Inverters portfolio with genuine manufacturer warranty and technical sizing support for EPCs and site owners moving into commercial-scale solar. See the full lineup on the Sineng product page, or contact the team for a project-specific quote.
