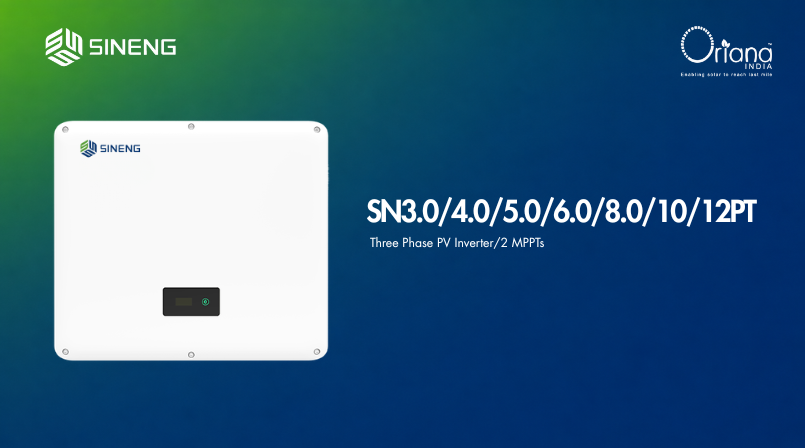

Sineng SN3.0/4.0/5.0/6.0/8.0/10/12PT: A Three-Phase Inverter Series Built for Every Rooftop Size

Most residential and small commercial rooftops don't need a single fixed-capacity inverter they need one platform that scales cleanly as system size grows. That's exactly what the Sineng SN3.0/4.0/5.0/6.0/8.0/10/12PT series delivers: seven capacity points, one three-phase architecture, and the kind of consistent efficiency that makes it a genuine option among Sineng On-grid Inverters for installers sizing anything from a small home to a larger commercial rooftop.

Seven Models, One Platform

The series spans SN3.0PT through SN12PT 3kW, 4kW, 5kW, 6kW, 8kW, 10kW, and 12kW all built on the same three-phase, 2-MPPT design. Among Sineng On-grid Inverters, this range covers the bulk of residential and small commercial demand without switching product families as a project's capacity requirement grows, which keeps spare parts, monitoring setup, and installer familiarity consistent across a wider range of jobs.

What the Two MPPTs Actually Buy You

With 2 independent MPPT trackers, each string tracks its own optimal operating point rather than being forced to match the weaker of two roof faces. That matters directly on Indian rooftops, where east-west orientations or partial shading from water tanks and parapets are common rather than exceptions. The MPPT voltage range widens as capacity increases from 190V-850V on the smaller SN3.0PT-SN5.0PT models up to 450V-850V on the SN12PT giving each model a voltage window matched to its recommended array size rather than a one-size-fits-all range that underperforms at either end.

Efficiency That Holds Across the Whole Range

Max. efficiency climbs from 98.0% on the smallest model to 98.5% on the SN12PT, with European efficiency following a similar curve. That's a meaningful spread among Sineng On-grid Inverters at this capacity efficiency figures that don't just look good on a spec sheet for the flagship model but actually hold up across the smaller units most residential installs will use.

Built for Unattended Outdoor Duty

• IP66 protection and C5 anti-corrosion rating rated for direct outdoor mounting in coastal and industrial-adjacent environments without a separate enclosure.

• Type II surge protection on both DC and AC sides standard across the range, not an optional add-on.

• Built-in arc-fault circuit interrupter (AFCI) detects dangerous DC arcing conditions and shuts down automatically, a safety feature increasingly expected on residential-scale inverters.

• Fanless design the SN3.0PT-SN6.0PT models run silently with natural convection cooling, relevant for inverters mounted near living spaces.

• 1.1x continuous output overload capability gives the inverter headroom to handle brief load spikes without tripping.

Monitoring and Site Management

Every model supports quick app-based setup for smart monitoring, along with local and remote maintenance access useful for installers managing a growing base of sites without a truck roll for every routine check. Accurate string-level current detection helps flag an underperforming string early, and export power limit support means the inverter can be configured to comply with DISCOM export restrictions without external hardware. An optional OLED screen is available for sites that want on-unit status display in addition to app monitoring.

Where This Series Fits

• Homes with three-phase supply looking for a residential-scale inverter without stepping down to single-phase.

• East-west or partially shaded roofs that benefit directly from independent 2-MPPT tracking rather than a single-string design.

• Installers standardizing on one platform across a range of home sizes, from a compact 3kW system up to a 12kW commercial-adjacent rooftop.

Sourcing the SN3.0/4.0/5.0/6.0/8.0/10/12PT Through OSG Oriana India

OSG Oriana India is the official distributor for Sineng Inverters across India, supplying this residential series among the most reliable Sineng On-grid Inverters available in the country alongside Sineng's full On-Grid, Hybrid, and HV Battery System range to solar EPC companies nationwide. Every unit comes with genuine manufacturer warranty and dedicated technical support.

Explore the full Sineng lineup on the Sineng Inverters product page, or see the complete residential and C&I range on the Sineng distributor page. For the complete technical specifications, download the official SN3.0/4.0/5.0/6.0/8.0/10/12PT datasheet. To learn more about OSG Oriana India as a PAN India solar distributor, visit our About Us page, or reach the team directly via Contact Us.

Get a quote for the Sineng SN3.0/4.0/5.0/6.0/8.0/10/12PT series →
