Solis Single Phase Low Voltage Energy Storage Inverter: S6-EH1P(3-8)K-L-PLUS

Rooftop solar is transitioning away from simply pushing power back to the grid to prioritising self-consumption, energy resilience, and intelligent management. High-performance hybrid inverters have emerged as the foundational element of modern home energy systems.

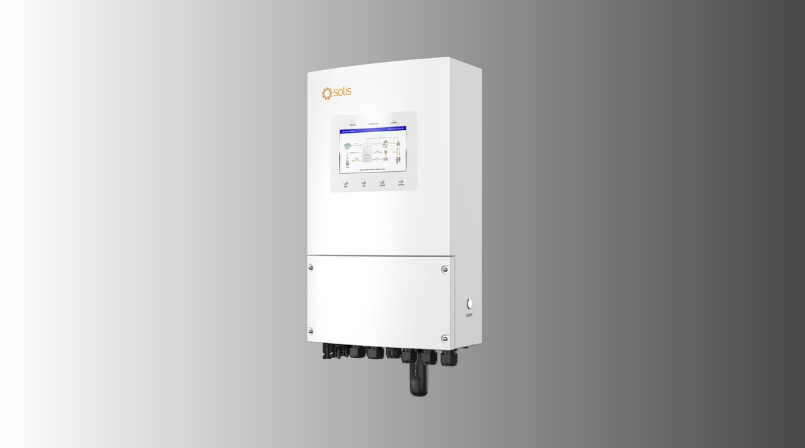

The Solis S6-EH1P(3-8)K-L-PLUS Single Phase Low Voltage Energy Storage Inverter represents this shift, offering an adaptable, robust solution designed to manage complex power scenarios with minimal friction.

Whether you are looking to build a new off-grid microgrid, upgrade an existing grid-tied system, or guarantee seamless backup power during blackouts, this detailed breakdown covers the critical specifications from the manufacturer's global datasheet.

The Product Lineup: Model Variants

The S6-EH1P(3-8)K-L-PLUS family consists of five core single-phase models tailored to various residential load requirements:

• S6-EH1P3K-L-PLUS: 3.0 kW Rated Output Power

• S6-EH1P3.6K-L-PLUS: 3.6 kW Rated Output Power

• S6-EH1P5K-L-PLUS: 5.0 kW Rated Output Power

• S6-EH1P6K-L-PLUS: 6.0 kW Rated Output Power

• S6-EH1P8K-L-PLUS: 8.0 kW Rated Output Power

(Note: Certain regional variants also include 4.6kW, 9kW, and 10kW capacities to accommodate regional grid standards).

Key Features and Technical Capabilities

The Solis S6 series leverages high-spec internal hardware to deliver system efficiency and protection:

• Aggressive PV Oversizing (1.6 DC:AC Ratio): The inverter supports DC solar input up to 160% of the AC output rating. This allows you to oversize your solar array to ensure the batteries charge efficiently even on cloudy days.

• High-Current MPPT Design: Equipped with dual MPPTs supporting up to 21A of input current, this series is fully compatible with modern, large-format, high-power solar modules (such as 182mm/210mm cells).

• High Charge/Discharge Performance: The platform supports a massive maximum charge and discharge current of up to 190A, enabling rapid energy transfer to and from the battery storage bank.

• Industrial-Grade Build & UI: Features a robust IP66 ingress protection rating for harsh outdoor environments, paired with an integrated 7-inch industrial-grade color LCD screen and physical Bluetooth connectivity for quick local programming.

Flexible Operational Use Cases

Use Case 1: Complex Microgrids & Grid-Expansion

With integrated parallel functionality, you can link up to 6 units simultaneously. This enables the creation of large, flexible single-phase or three-phase configurations scaled up to 48kW.

Use Case 2: Multi-Source Generator Integration

The inverter features independent, programmable generator input ports. It automatically manages dry-contact control signals to start or stop a diesel generator based on battery state-of-charge (SoC) or real-time home demand.

Use Case 3: Retrofitting Existing Solar Arrays (AC Coupling)

If you already have a standard grid-tied solar system installed but want to add battery storage, the S6 hybrid features an Intelligent AC Coupling mode. This permits you to link your existing PV system into the backup network without replacing your older grid-tied inverter.

Who is this Inverter Best For?

• Homeowners in Unstable Grid Regions: The sub-10ms switching time combined with automatic generator control guarantees continuous operation for areas facing frequent blackouts.

• Off-Grid Pioneers on a Budget: With its PV-only off-grid starting capability, users can run loads directly from solar during the daytime before investing in battery storage.

• High-Surge Households: Best for homes running heavy equipment like deep-well pumps, central air conditioning units, and heavy kitchen appliances.

• Smart Home Enthusiasts: Users looking for detailed control can leverage SolisCloud's AI optimization engine to schedule 6 distinct daily charging/discharging time-of-use slots to save on peak utility rates.
